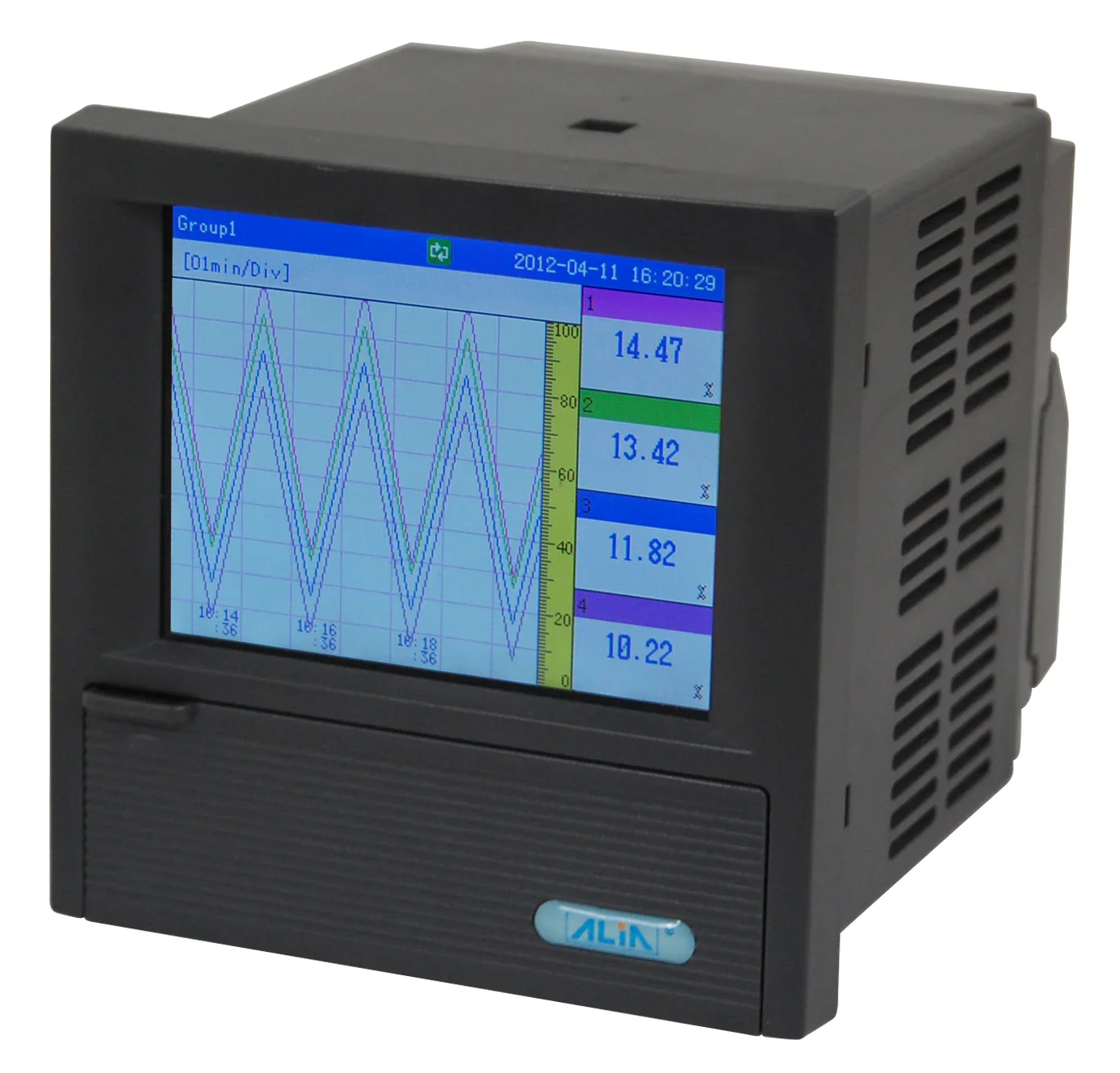

ARC800 Series
ARC800 Series Paperless Recorder features the most advanced technology. It can be applied across a broad scope of industrial applications. ARC800 is the product which with multi-channels, complete functions, easy operation, high accuracy,low power but high performance. And the series overcome the old-fashioned paperless recorder, which has less channels, multiple installation and space-consuming problem.
FEATURES
ARC800 Series Paperless Recorder features the most advanced technology. It can be applied across a broad scope of industrial applications. ARC800 is the product which with multi-channels, complete functions, easy operation, high accuracy,low power but high performance. And the series overcome the old-fashioned paperless recorder, which has less channels, multiple installation and space-consuming problem.
FEATURES
- DIN Size (96mm*96mm), 320*240 Pixels, TFT truecolor (LCD)
- 4MB memory installed inside, applied to long terms data record
- Common input signal: mA, Include VDC, T/C, RTD, Hz etc.
- High Accuracy +/-0.15% of Reading
- 2 relay outputs, 1 analog output (4-20mA),1 (24VDC) power supply output
- 4 channels Max.input
- 24VDC Aux. Power supply available for 2 wires system
- Display / Record Single-point, Multi-point, Trend, Totalizer, Bargraph
- The recorded data could be stored in USB memory & SD memory card and transferred to computer for soft analysis
